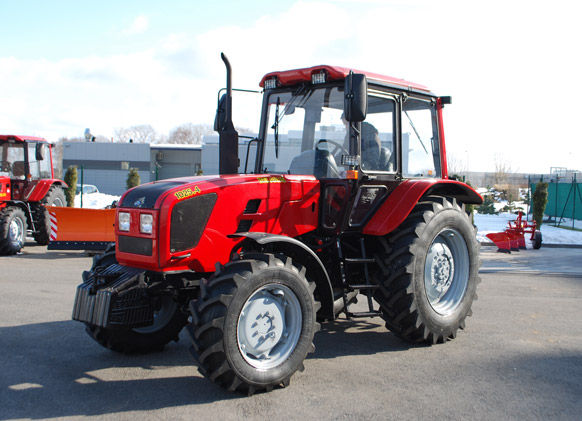

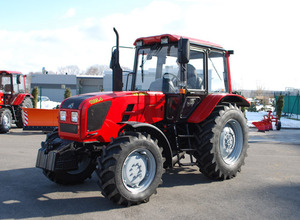

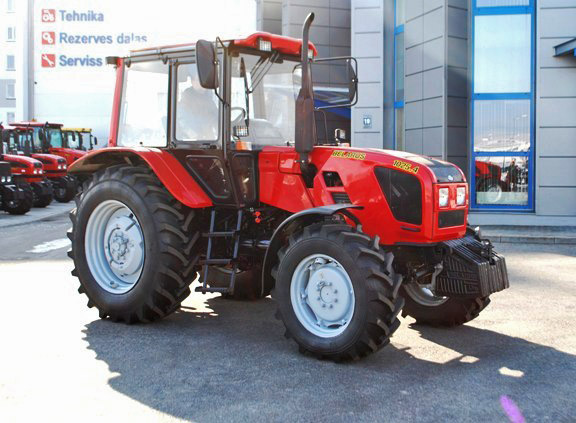

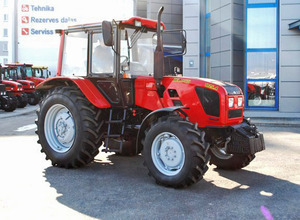

BELARUS 1025.4 TIER-IIIA
Photos
| Model 1025.4 | Version with MMZ |
| Wheel arrangement | 4x4 |
| Engine | MMZ TIER-IIIA |
| Power hp (kw) | 105(77) |
| Electrics | starter 24v , a heating plug for each cylinder |
| Clutch | double-disk, dry |
| Gearbox | synchronised, 16/ 8 (16 -forward, 8 -reverse) |
| Speed range, forward/reverse km/h | 2.30– 36.60 / 4.0 – 17.15 |
| Front axle | 822 with planetary-cylindrical reducion |
| Independent I: II, rph | I - 540 II - 1000 |
| Synchronised I: II, rev. per m | 3.50 |
| Lifting capacity at hitch ends, kg | 4500 (two-cylinder hinge, monoblock) |
| Length | 4025 |
| Width | 1970 |
| Height | 2870 |
| Wheelbase, mm | 2570 |
| Front wheels | 1450-1975 |
| Rear wheels | 1460-2100 |
| Ground clearance | 645 |
| Operating weight,kg | 4295 (with front and rear balance) |
| Front | 360/70R24 |
| Rear | 18.4R34 |
| Technical test | every 125 h |
| Optional equipment | double tyres, front hitch, air conditioning, cd-system |
